All tables

Here are the figures from the paper Art of the Brainwaves.

data

Code
data <- read_excel("../data/results_survey.xlsx")
data <- data[1:121] %>%
  filter(.[[18]] !='Yes') # not analysed any EEG method

n1 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 1)
n2 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 2)
n3 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 3)
n4 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 4)
n5 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 5)
n6 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 6)
n7 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 7)
n8 <- readxl::read_xlsx("../data/aggregated_plotnames.xlsx", sheet = 8)

problem1 <- readxl::read_xlsx("../data/aggregated_problems.xlsx", sheet = 1)
problem2 <- readxl::read_xlsx("../data/aggregated_problems.xlsx", sheet = 2)
problem3 <- readxl::read_xlsx("../data/aggregated_problems.xlsx", sheet = 3)
problem4 <- readxl::read_xlsx("../data/aggregated_problems.xlsx", sheet = 4)
problem5 <- readxl::read_xlsx("../data/aggregated_problems.xlsx", sheet = 5)
problem6 <- readxl::read_xlsx("../data/aggregated_problems.xlsx", sheet = 6)
problem7 <- readxl::read_xlsx("../data/aggregated_problems.xlsx", sheet = 7)

exp_data <- data[c( 19, 20, 12, 21, 22)]
colnames(exp_data) <- c("n_papers", "years", "position","self_level", "code_contribution")

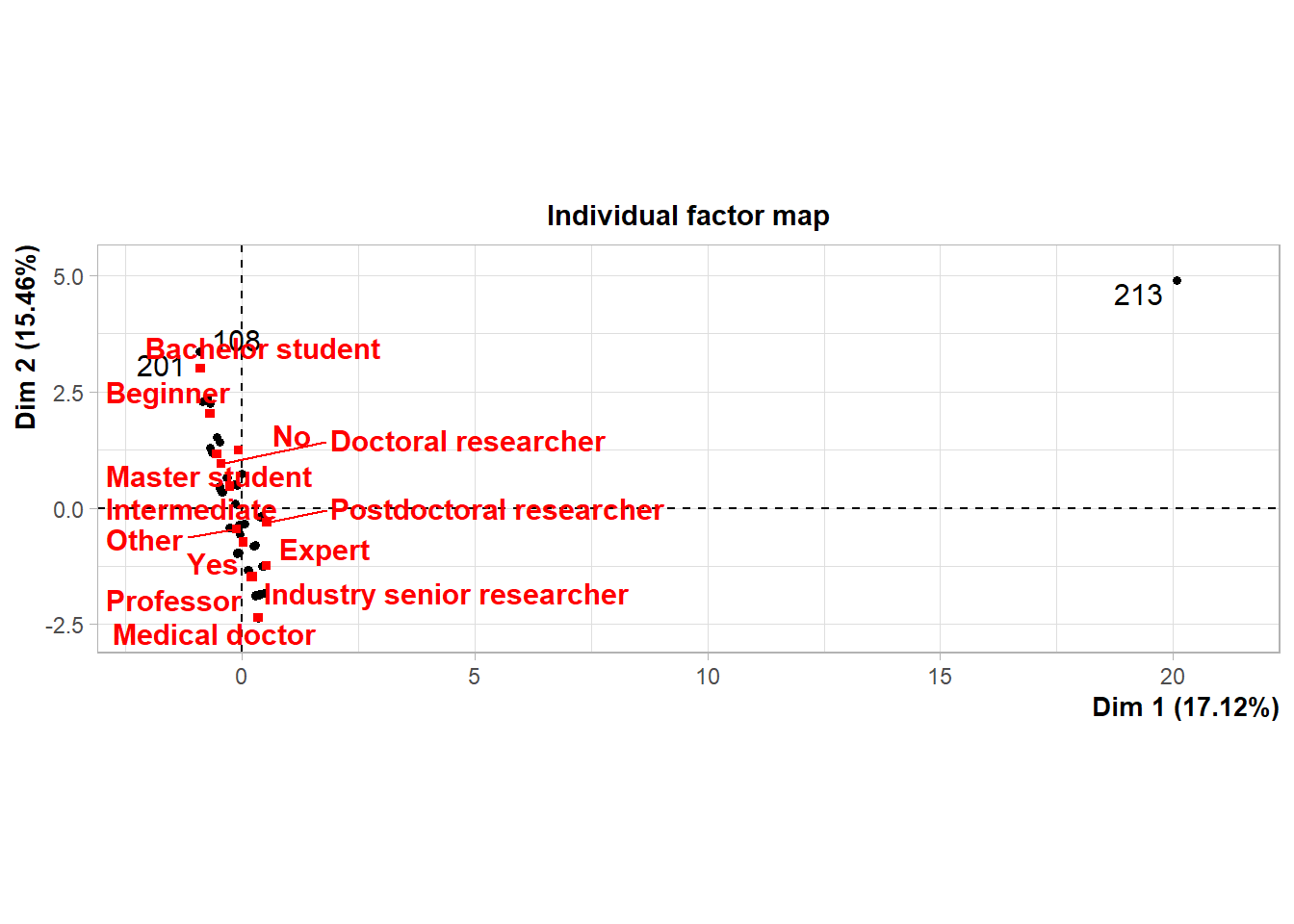

m = FAMD(exp_data[1:5], ncp=2, axes=c(1,2))

Code
factor_scores <- as.data.frame(m$ind$coord)

font_add_google("Lato")
showtext_opts(dpi = 200)
showtext_auto(enable = TRUE)

Table 1

Code
dm <- data.frame()

dim <- dplyr::tibble(
  Plots = c("../miniatures/1.png", "../miniatures/2.png", "../miniatures/3.png", "../miniatures/4.png", "../miniatures/5.png", "../miniatures/6.png", "../miniatures/7.png", "../miniatures/8.png"),
  Name = c("ERP plot", "Butterfly plot", "Topoplot", "Topoplot timeseries", "ERP grid", "ERP image", "Channel image", "Parallel plot"),
  Time = c("x", "x", "", "(x)", "x", "x", "x", "(x)"),
  Channels = c("", "x", "x", "x", "x", "", "x", "x"),
  Layout = c("", "", "x", "x", "x", "", "", ""),
  Conditions = c("x", "", "", "", "(x)", "", "", "x"),
  Trials = c("", "", "", "", "", "x", "", "(x)"),
  Voltage = c("x", "x", "x", "x", "x", "x", "x", "x")
)

t1_1 <- dim %>% flextable() %>%  valign(j = 2, valign = "center", part = "all") %>%
  compose(j = 'Plots', value = as_paragraph(as_image(Plots, width = 1.5, height = 0.9))) %>%
   #padding(padding = 1, part = "all") %>%
  autofit() %>% align(j = 3:8, align = "center") %>%
   width(j = "Plots", width = 0.6) %>%                    # ~0.6 inch; tweak as needed
  # height_all(0.01, part = "all", unit = "cm") %>%
  height_all(height = 0.3, unit = "in") %>%             # keep rows compact around the image
  surround(
    j = 1:8,
    border.bottom = fp_border(color = "gray", style = "dashed"),
    part = "body"
  ) %>%   font(fontname = "Lato", part="all") %>%
    fontsize(size = 36, part = "all") %>%         # increase font size

    color(color = "black", part = "all") %>%      # set font color to black
  hline_bottom(part = "body", border = fp_border(color = "black", width = 1)) |>
  add_footer_lines("x - full dimension, (x) - partial dimension") %>%
 fontsize(size = 20, part = "footer")

t1_1

Plots

Name

Time

Channels

Layout

Conditions

Trials

Voltage

ERP plot

x

x

x

Butterfly plot

x

x

x

Topoplot

x

x

x

Topoplot timeseries

(x)

x

x

x

ERP grid

x

x

x

(x)

x

ERP image

x

x

x

Channel image

x

x

x

Parallel plot

(x)

x

x

(x)

x

x - full dimension, (x) - partial dimension

Code
#save_as_html(t1_1, path = "table.html")
#browseURL("table.html")

Table 2

Code
plot_names <- c("ERP plot", "Butterfly plot", "Topoplot", "Topoplot\ntimeseries", "ERP grid", "ERP image", "Channel image", "Parallel plot")

t <- list(n1, n2, n3, n4, n5, n6, n7, n8)

create_table <- function(t){
  tmp <- t[[1]] %>% mutate(total = sum(Scores)) %>% slice(1:3) %>% mutate(type = plot_names[1]) %>% rename_with(.cols = 1, ~"names") %>% relocate(type, names )

  for (i in 2:8){
    tmp <- t[[i]]  %>% mutate(total = sum(Scores)) %>% slice(1:3) %>%
      mutate(type = plot_names[i]) %>% rename_with(.cols = 1, ~"names") %>% relocate(type, names) %>%
      rbind(tmp, .)
  }
  tmp <- tmp %>%
    group_by( type) %>%
    dplyr::mutate(groupRow = 1:n()) %>%
    ungroup() %>% mutate(p = round(as.numeric(Scores)/as.numeric(total), 2) * 100) %>%
    mutate(score = paste(p, total, sep = "% out of ")) %>%
    dplyr::mutate(type = ifelse(groupRow == 1, as.character(type), "")) %>%
    dplyr::mutate(Scores = ifelse(groupRow == 1, as.character(score), paste(p, "%", sep = ""))) %>%
    select(-c(groupRow, score))
}
plots2 <- c("../miniatures/1.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/2.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/3.png","../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/4.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/5.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/6.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/7.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/8.png", "../miniatures/filler.png")

plotnames <- create_table(t) %>% data.frame() %>%
  mutate(names = str_to_sentence(names)) %>%
  mutate(names = str_replace(names, "Erp", "ERP")) %>%
  mutate(names = str_replace(names, "erp", "ERP")) %>% tibble::add_column(Plots = plots2, .before = "type") %>%
  dplyr::rename(`Plot types` = type,
         `Aggregated responses` = names) %>% select(-total, -p)

t2 <- plotnames %>% flextable() %>%
  merge_at(j= 1, i = 1:3) %>% merge_at(j= 1, i = 4:6) %>%
  merge_at(j= 1, i = 7:9) %>% merge_at(j= 1, i = 10:12) %>%
  merge_at(j= 1, i = 13:15) %>% merge_at(j= 1, i = 16:18) %>%
  merge_at(j= 1, i = 19:21) %>% merge_at(j= 1, i = 22:23) %>%

  merge_at(j= 2, i = 1:3) %>% merge_at(j= 2, i = 4:6) %>%
  merge_at(j= 2, i = 7:9) %>% merge_at(j= 2, i = 10:12) %>%
  merge_at(j= 2, i = 13:15) %>% merge_at(j= 2, i = 16:18) %>%
  merge_at(j= 2, i = 19:21) %>% merge_at(j= 2, i = 22:23)  %>%
  valign(j = 2, valign = "center", part = "all") %>%
  compose(j = 'Plots', value = as_paragraph(as_image(Plots, width = 1, height = 0.6))) %>%
   padding(padding = 1, part = "all") %>%
  autofit() %>% valign(valign = "top") %>%
  height_all(0.01, part = "all", unit = "cm") %>%
  surround(
    i = c(3, 6, 9, 12, 15, 18, 21),
    j = 1:4,
    border.bottom = fp_border(color = "gray", style = "dashed"),
    part = "body"
  ) %>%   font(fontname = "Lato", part="all") %>%
  hline_bottom(part = "body", border = fp_border(color = "white", width = 3))
t2

Plots

Plot types

Aggregated responses

Scores

ERP plot

ERP (plot)

39% out of 197

Averaged ERP (plot)

19%

ERP wave(form)s

6%

Butterfly plot

Butterfly (plot)

48% out of 159

Single/individual channel ERP (plot)

17%

Multi(channel/electrode) ERP (plot)

14%

Topoplot

Topo(plot)

40% out of 192

Topography (plot)

39%

Topomap

7%

Topoplot
timeseries

Topo(plot) over time(series/course)

23% out of 189

Topography over time(series/course)

22%

Topo(plot)

12%

ERP grid

ERP over channels

15% out of 162

Multi(channel) plot

14%

Topographic ERP

14%

ERP image

ERP image

27% out of 114

Sorted ERP trials

19%

Trials

11%

Channel image

Channel(s) (ERP)

35% out of 96

Heatmap

16%

Channel image

9%

Parallel plot

(ERP) amplitudes

50% out of 8

Parallel coordinates

50%

Table 3

Code
prob_comb <-
  rbind(problem1, problem2, problem3, problem4, problem5, problem6, problem7) %>%
  group_by(`Plot names`) %>%  mutate(index = match(`Plot names`, unique(`Plot names`)))  %>% filter(`Main problems` != "no complains") %>%
  arrange(desc(Scores)) %>% slice(1:3) %>%
  arrange(index) %>%  dplyr::select(`Plot names`, `Main problems`, Scores, Total) %>%
  mutate(`Plot names` = str_to_sentence(`Plot names`)) %>%
  mutate(`Plot names` = str_replace(`Plot names`, "Erp", "ERP")) %>%
  mutate(`Plot names` = str_replace(`Plot names`, "erp", "ERP")) %>%
  group_by(`Plot names`) %>%
  dplyr::mutate(groupRow = 1:n()) %>%
  ungroup() %>%
  mutate(p = round(as.numeric(Scores)/as.numeric(Total), 2) * 100) %>%
  dplyr::group_by(`Plot names`) %>%   mutate(mx = max(p)) %>%
  arrange(desc(mx), desc(p)) %>%
  mutate(score = paste(p, Total, sep = "% out of ")) %>%
  dplyr::mutate(`Plot names` = ifelse(groupRow == 1, as.character(`Plot names`), "")) %>%
  dplyr::mutate(Scores = ifelse(groupRow == 1, as.character(score), paste(p, "%", sep = ""))) %>%
  select(-c(groupRow, score, Total, p, mx))

plots3 <- c("../miniatures/1.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/5.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/4.png","../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/7.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/2.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/3.png", "../miniatures/filler.png", "../miniatures/filler.png", "../miniatures/6.png", "../miniatures/filler.png", "../miniatures/filler.png")

probs <- prob_comb %>% tibble::add_column(Plots = plots3, .before = "Plot names")  %>% ungroup()

t3 <- probs %>% flextable() %>%
  merge_at(j= 1, i = 1:3) %>% merge_at(j= 1, i = 4:6) %>%
  merge_at(j= 1, i = 7:9) %>% merge_at(j= 1, i = 10:12) %>%
  merge_at(j= 1, i = 13:15) %>% merge_at(j= 1, i = 16:18) %>%
  merge_at(j= 1, i = 19:21) %>%
  merge_at(j= 2, i = 1:3) %>% merge_at(j= 2, i = 4:6) %>%
  merge_at(j= 2, i = 7:9) %>% merge_at(j= 2, i = 10:12) %>%
  merge_at(j= 2, i = 13:15) %>% merge_at(j= 2, i = 16:18) %>%
  merge_at(j= 2, i = 19:21) %>%
  padding(padding = 1, part = "all") %>%
  valign(j = 2, valign = "center", part = "all") %>%
  compose(j = 'Plots', value = as_paragraph(as_image(Plots, width = 1, height = 0.6))) %>%
  autofit() %>%
  height_all(0.01, part = "all", unit = "cm") %>%
  surround(
    i = c(3, 6, 9, 12, 15, 18, 21),
    j = 1:4,
    border.bottom = fp_border(color = "gray", style = "dashed"),
    part = "body"
  ) %>%
    hline_bottom(part = "body", border = fp_border(color = "white", width = 1)) %>%
  font(fontname = "Lato", part="all")
t3

Plots

Plot names

Main problems

Scores

ERP plot

uncertainty

34% out of 187

customization

6%

color

2%

ERP grid

legibility and scaling

25% out of 133

customization

6%

channel selection

2%

Topoplot timeseries

time specification

17% out of 153

color

5%

customization

4%

Channel image

sorting

14% out of 51

legibility and scaling

8%

color

4%

Butterfly plot

color

11% out of 125

channel selection

9%

adding topography

4%

Topoplot

channel selection

9% out of 175

head shape and montage

6%

color

5%

ERP image

sorting

7% out of 70

preprocessing

4%

smoothing

4%

Sup table 1

Code
log_fun <- function(df){
  mod <- glm(df$score ~ df$proxy, family = "binomial")
  ci1 <- confint(mod)[2]
  ci2 <- confint(mod)[4]
  mod %>% tidy() %>% slice(-1) %>% cbind(ci1) %>% cbind(ci2)
}

vec <- names(data[25:51]) %>% str_split_i(., "\\? \\[", 2) %>%  str_sub(., 1, -2)

st1 <- data[25:51] %>%
  rename_at(vars(colnames(.)), ~ vec) %>%
  dplyr::select(-Other) %>%
  mutate_at(vars(vec[1:26]), function(., na.rm = FALSE) (x = ifelse(.=="Yes", 1, 0))) %>%
  select_if(colSums(.) > 10) %>%
  cbind(factor_scores[1], .) %>% dplyr::rename(proxy = !!names(.)[1]) %>%
  gather(type, score, BESA:`Custom scripts`) %>%
   dplyr::group_by(., type) %>% nest() %>%
  dplyr::mutate(., model = map(data, log_fun)) %>% unnest() %>%
  dplyr::select(type, estimate, std.error, p.value, ci1, ci2) %>%
  dplyr::group_by(type) %>%  slice(1) %>% mutate(p.value = round(as.numeric(p.value), 2),
                                                 estimate = round(as.numeric(estimate), 2),
                                                 std.error = round(as.numeric(std.error), 2),
                                                 CI = paste0('(' , round(ci1, 3), ', ', round(ci2, 3), ')' )) %>%
  dplyr::select(-ci1, -ci2) %>%
  mutate(p.value = cell_spec(p.value, bold = ifelse(p.value < 0.05, TRUE, FALSE))) %>%
  dplyr::rename(`Analytical software` = type, `Estimate` = estimate) %>%
  kable(escape = F, booktabs = T) #%>%
  #kable_minimal(full_width = F,  html_font = "Source Sans Pro")

st1 %>% kable_styling(full_width = F,  html_font = "Source Sans Pro") %>%
  row_spec(0:11, color = "black") %>%
  save_kable(file = "Supplementary Table 1.jpg",
             zoom = 5)

Sup table 2

Code
cor_fun <- function(df){
  p.value <- cor.test(df$proxy, df$score, method = "spearman")$p.value
  mod <- spearman.ci(df$proxy, df$score) %>% tidy() %>% cbind(p.value)
  }
feature <- data[52:60] %>% rename_all(., ~str_split_i(colnames(data[52:60]), "\\? \\[", 2) %>% str_sub(., 1, -2) ) %>%
  mutate_at(c(colnames(.)),
        funs(recode(.,
        "Very important"= 2, "Important"= 1, "Neutral"= 0,
        "Low importance"= -1, "Not at all important" = -2 )))  %>%
  cbind(., factor_scores[1]) %>%
  rename_at(vars(colnames(.)), ~ c("subplot", "attributes", "speed", "publicable", "reproducable", "zooming", "interactive", "gui", "coding", "proxy"))

st2 <- feature %>%
  gather(type, score, subplot:coding) %>%
  dplyr::group_by(., type) %>% nest() %>%
  dplyr::mutate(., model = map(data, cor_fun)) %>% unnest() %>%
  dplyr::select(type, estimate, conf.low.Inf, conf.high.Sup, p.value) %>% # , method
  dplyr::group_by(type) %>%  slice(1) %>% mutate(estimate = round(as.numeric(estimate), 2),
                                                 CI = paste0('(' , round(conf.low.Inf, 3), ', ', round(conf.high.Sup, 3), ')' ),
                                                             p.value = round(as.numeric(p.value), 2)) %>%
  mutate(p.value = cell_spec(p.value, bold = ifelse(p.value < 0.05, TRUE, FALSE))) %>%
  dplyr::rename(`Software feature` = type, `Spearman rho` = estimate) %>%
  select(-conf.low.Inf, -conf.high.Sup) %>%
  kable(escape = F, booktabs = T) #%>%
  #kable_minimal(full_width = F,  html_font = "Source Sans Pro")

st2 %>% kable_styling(full_width = F, html_font = "Source Sans Pro", latex_options = "striped") %>%
  row_spec(0:9, color = "black") %>%
  save_kable(file = "Supplementary Table 2.jpg", zoom = 5)
